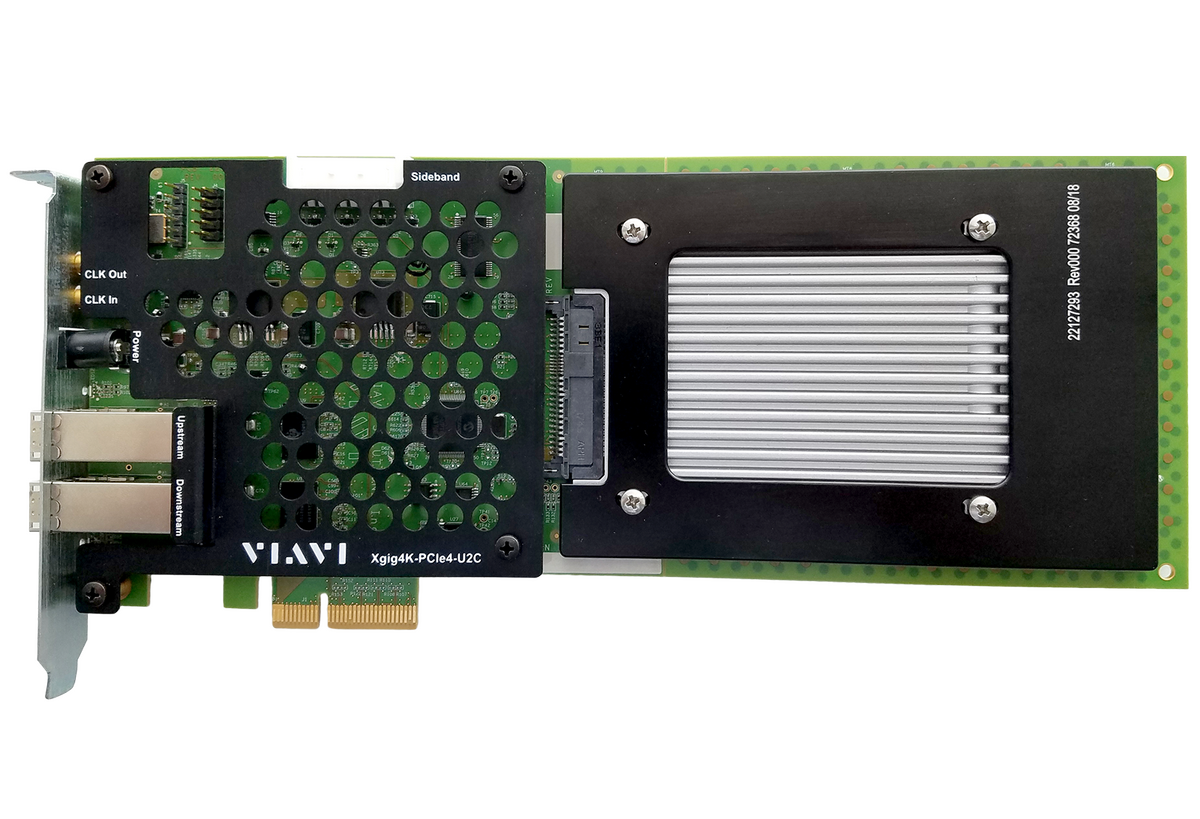

VIAVI - Xgig U.2-CEM, 4-lane Interposer for PCI Express 4.0

  • Operates up to 16GTps, PCIe 4.0 data rates
  • Downward compatible with PCIe 1.0, 2.0 and 3.0 data rates of 2.5, 5.0 and 8.0GTps
  • Supports links of up to and including 4-lanes
  • NVMe SSD DUT (not supplied) plugs directly into the Interposer
  • Supplied with two high-performance custom cables for Analyzer attachment
  • Data path uses high-speed linear redrivers to ensure good signal capture with little or no tuning
  • Supports Analyzer side-band signal capture and triggering
  • Provides two differential clock connectors
  • Interposer power is independent of host system
  • A 120/220 AC in, 12V/3A DC output converter is included
  • LEDs give quick indicators of power and status
  • Format: Design based on 4-lane PCIe CEM specification
  • Supported by VIAVI Analyzer tools for trace capture with filter, trigger and more
  • Provides consistent, repeatable capture of link training, negotiation and other data
  • Supports error injection for deep system analysis
  • Supported by Xgig tool suite including Trace Control, Expert and Serialytics

Applications

  • Used for NVMe controller IC, sub-system and system level debug
  • Supports firmware and driver development, validation, and performance tuning
  • Works together with the VIAVI PCIe4 and PCIe5 Analyzer/Jammer platform

Benefits

  • Faster analysis and problem isolation
  • Quicker time to market and earlier revenue
  • Lower engineering costs
  • Provides consistent, repeatable capture of link training, equalization and other in-band and side-band data
