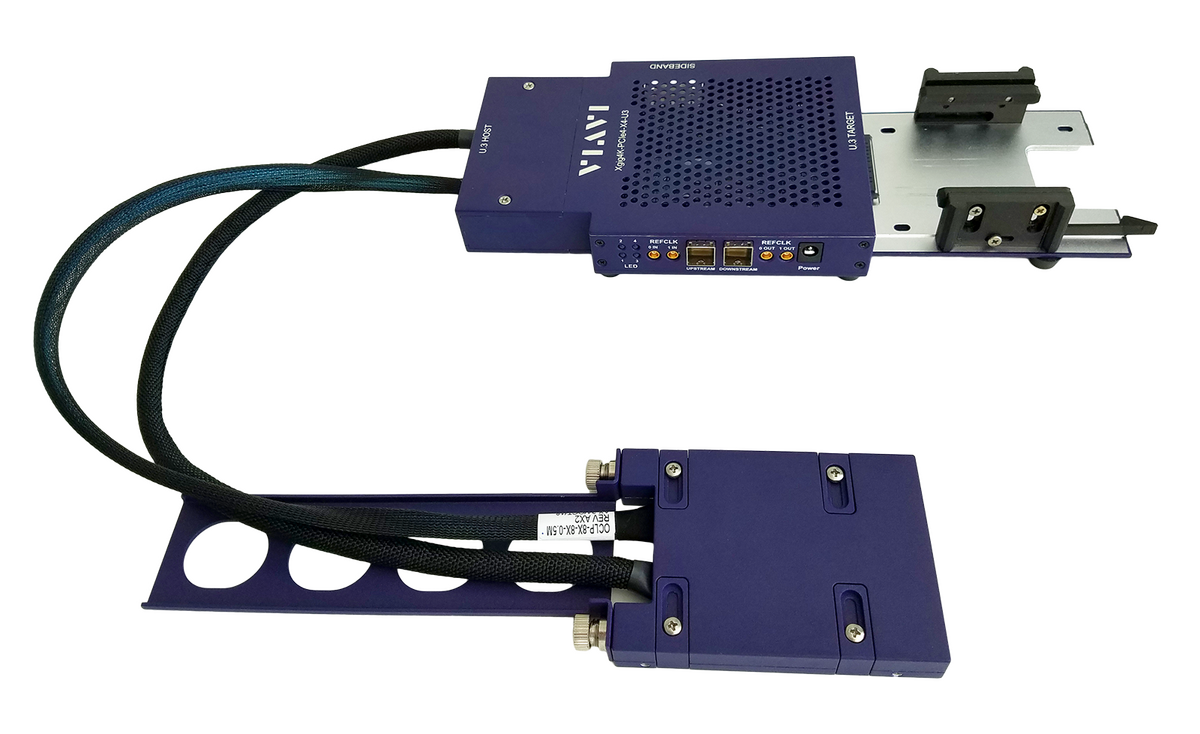

VIAVI - Xgig U.3-Server, 4-lane Interposer for PCI Express 4.0
-
Operates up to 16GTps, PCIe 4.0 data rates
-
Downward compatible with PCIe data rates of 2.5, 5.0 and 8.0GTps
-
Supports 1-link of 4-lanes, or 2-links of 2- lanes
-
Adjustable tray clamps and quick-release latch allow for snug fit and quick SSD swap
-
Data path uses high-speed linear redrivers to insure good signal capture with little or no tuning
-
Supplied with high-quality, custom SFF-8764 cables for analyzer system attachment
-
Supports side-band signal capture and triggering
-
Supplied power brick makes interposer power independent of host system
-
Works together with the VIAVI Xgig 4K4 and 4K16 PCIe 4.0 Analyzer/Jammer chassis
-
Supported by VIAVI Xgig Analysis tools for trace capture with flexible filters, triggers and more
-
Provides consistent, repeatable capture of link training, negotiation and other data
The VIAVI Solutions Xgig U.3-Server, 4-lane Interposer for PCI Express® 4.0 is an active Interposer optimized for development, debugging and performance tuning of NVMe SSD operation in high-density storage servers. Bidirectional PCIe 4.0 protocol data on 4 lanes is captured at 16GTps for analysis. The interposer supports either 1 link of 4 lanes, or 2 links of 2 lanes. It is compliant to the SFF-TA-1001 connections standard for PCIe signals.
