LUMIMAX - LED Bar Lights
The design of LUMIMAX® LED Bar Lights generates the optimal illumination for elongated test objects. With High Power LEDs in conjunction with interchangeable ancillary lenses, these universal LED Bar Lights are suitable for example for dark field or bright field applications. Calculate the optimal illumination area for your application easily and simply with the help of our practical tool.
The Bar Lights in the LB series impress with their enormous irradiation intensities even at large working distances.
Miniature Bar Lights of the compact LSB series are designed for applications that demand perfect illumination in restricted installation environments. Another special feature is the innovative mounting solution, which allows one to four LED Bar Lights in the LSB series to be incorporated in the square. This four-sided mounting bracket is also a very flexible solution for shape-from-shading applications.
Go to the product configurator for your desired lighting
|

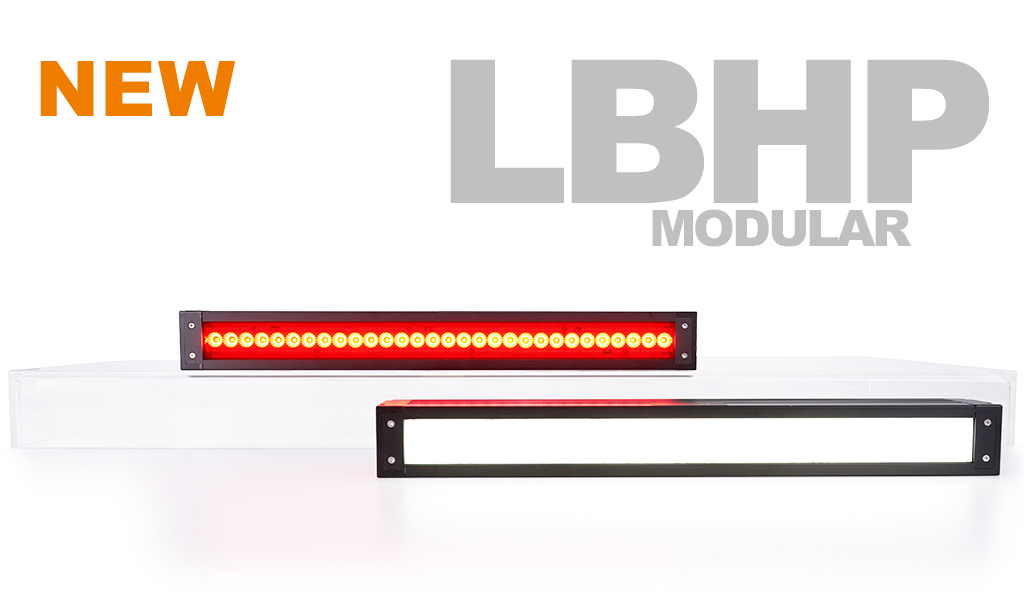

Modular High Performance Bar Lights |
|
|
| 100 mm modules for lengths up to 2 m |
|
Light output up to 1,000,000 Lux |
|
Compact design |
|
Flexible adjustment through versatile accessories |
|

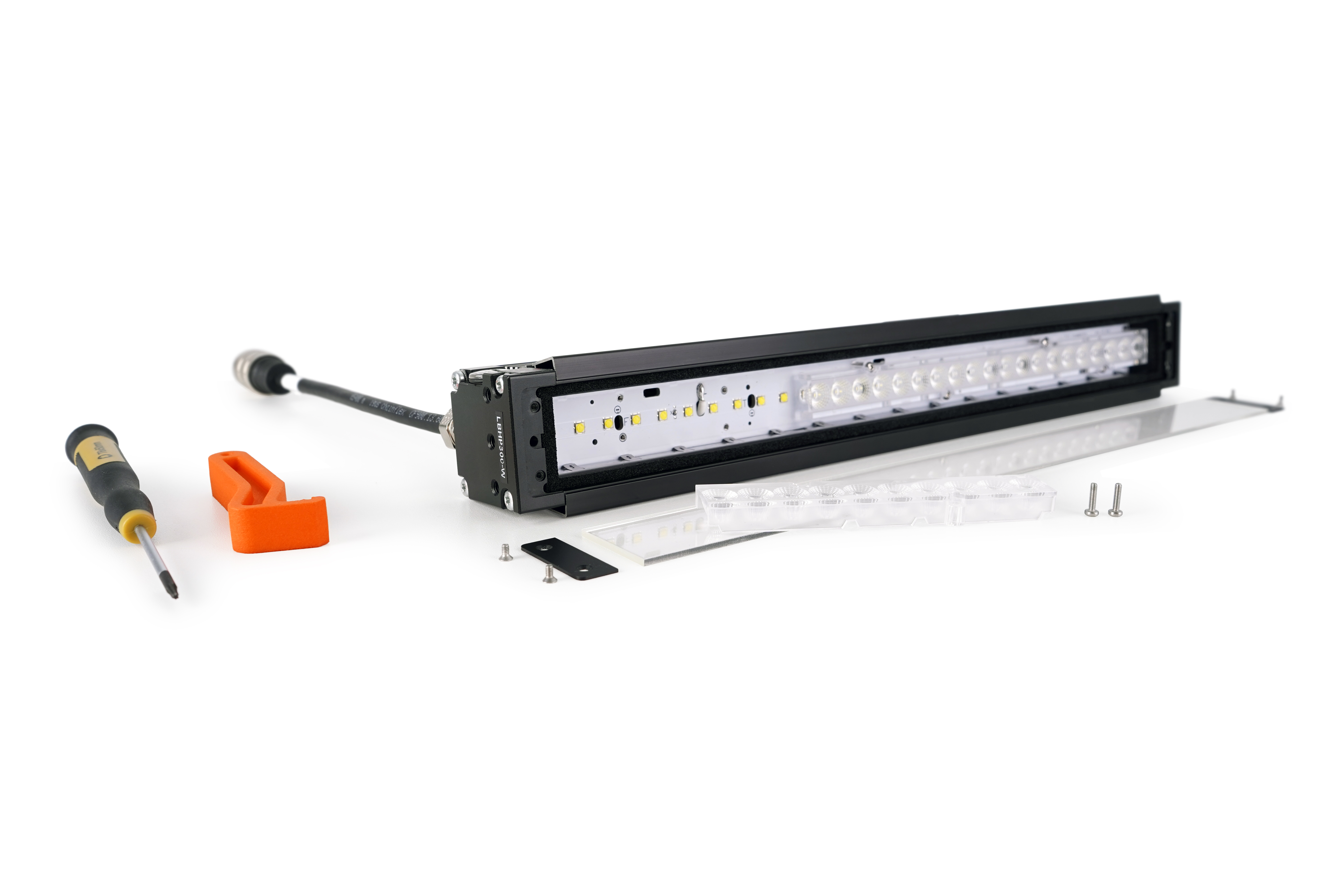

Individual Bar Lights for small and large inspection areas
|
|
Easy exchange of Lens Arrays for adapting the light characteristics (15°, 20°, 25°, 40°, 55° or 45x15°) |
|
Slightly satin diffuser (ALD) to reduce hot spots |
|
Strong diffuser (ALHD) for highly diffuse incident light |
|
Polarization filter (POL) to suppress reflections |
|
Illumination colours white, red (625 nm), green (525 nm), blue (470 nm) and infrared (850 nm) |
|
Compact aluminum housing (IP50) with integrated controller technology |
|
Reproducible quality control, e.g. on conveyor belts or in logistics |
|
Special application - Bar light in darkfield
|
|
Reflected light (dark field lighting) |
|
Bar light assembled with 45x15° lenses and positioned in a way, that the incoming light runs radially and flat to the test object level |
|
Light reflected by the surface of the test object is directed away from the camera (the object in the image appears dark) |
|
Light beams hitting irregularities (defects, contours, edges), will be deviated towards the camera (bright features in the picture) |
|
Areas of application: surface inspection, Shape from Shading |
|
High Power Bar Lights |
|
|
| Lengths from 125 mm to 500 mm |
|
Light output up to 350,000 Lux |
|
Fluorescence applications in UV365 nm and UV395 nm |
|
Flexible adjustment through versatile accessories |
|
Principle - Bar light in darkfield
|
|
Reflected light (dark field lighting) |
|
Bar light assembled with 48x19° lenses and positioned in a way, that the incoming light runs radially and flat to the test object level |
|
Light reflected by the surface of the test object is directed away from the camera (the object in the iamge appears dark) |
|
Light beams hitting irregularities (defects, contours , edges) will be deviated towards the camera (bright features in the picture) |
|
Areas of application: surface inspection, Shape from Shading |
|
Principle - Line & Bar Lights
|
|
Reflected light (partial bright field) |
|
Line & Bar Lights are used to direct light onto the test object at a slight angle |
|
Interchangeable ancillary lenses for the optimal adjustment of the beam characteristics |
|
Illumination of large test objects (e.g. cardboard boxes) |
|
Area of application: type and position detection, printed material inspection, OCR/OCV, surface inspection |
|
Miniature Bar Lights |
|
|
| Lengths from 50 mm to 200 mm |
|
Repeatable mounting of up to 4 lights for standardized code reading, dark field applications or Share from Shading |
|
Flexible adjustment through versatile accessories |
|
Strobe mode with external controller FLC1 |
|
Principle - Mini Line and Bar Lights - Dark Field Application
|
|
Reflected light (dark field lighting) |
|
Dark field application by using the mounting system MS1 or MS4 (optional accessory) |
|
Light reflected by the surface of the test object is directed away from the camera (the object in the image appears dark) |
|
Light beams hitting irregularities (defects, contours, edges), will be deviated towards the camera (bright features in the picture) |
|
Area of application: surface inspection, Shape from Shading |
|
Principle - Mini Line & Bar Lights
|
|
Reflected light (partial bright field) |
|
Mini line & Bar lights are used to direct light onto the test object at a slight angle |
|
Compact bar lightings especially for small test objects and integration under limited assembly conditions |
|
The mounting systems MS1-LSBxxx and MS4-LSBxxx allow for a gradual reproducible adaption of the inclination angle of 1 to 4 bar lightings |
|
The mounting systems included marks for 30° and 45° inclination angle of the lightings for standard conforming verification |
|
Area of application: standard-conforming inspection and verification of 2D-codes, Shape from Shading, type and position detection, printed material inspection |
|
Compact BASIC Bar Lights |
|
|
| Lengths from 50 mm to 1000 mm |
|
For price-sensitive applications |
|
Lightweight housing design |
|
Directed (30°) or highly diffuse (ALHD) lighting |
|
Principle - BASIC Bar Lights
|
|
Reflected light (partial bright field) |
|
Mini line & bar lights are used to direct light onto the test object at a slight angle |
|
Compact bar lights especially for small test objects and integration under limited assembly conditions |
|
The mounting systems MS1-LSBxxx and MS4-LSBxxx allow for a gradual, reproducible adaption of the inclination angle of 1 to 4 bar lightings |
|
The mounting system included marks for 30° and 45° inclination angle of the lightings for standard-conforming verification |
|
Area of application: standard-conforming inspection and verification of 2D-codes, Shape from Shading, type and position detection, printed material inspection |
More Product Information
LUMIMAX® LED area lights are for versatile use in all areas of Machine Vision for incident or backlight tasks. Their designs allow for any arrangement around the object to be inspected.
LED Area lights in the LG series are based on our LightGuide technology. State-of-the-art LightGuide technology guarantees the maximum degree of homogeneity and irradiance intensity over the entire light field. Variants with additional collimation accessories improve image contrast and minimise the glare effect at manual workstations. See in our Video - Principle Collimated Backlight Video the detailed principle of the collimated backlight.
The area lights of the LGCB series with a camera hole can also be used as a flat dome within a reflected light application and thus create a full-area, shadow-free illumination of the test object.
With the lightings of the BASIC series even price-sensititve applications can be reliably implemented.The focus here is on the realization of essential functions at high quality. A smart and lightweight design ease the integration in confined or moving machine vision systems.
