Anritsu - MP1900A Signal Quality Analyzer-R
MP1900A series is an 8-slot modular, high-performance BERT supporting all-in-one Physical layer measurements of both high-speed network interfaces as NRZ and PAM4, and PCI Express/USB, bus interfaces
To cope with increasing data traffic caused by the widespread popularity of smartphones and mobile terminals, data-center network interfaces are being transitioned to the faster 200 GbE/400 GbE/800 GbE standards, while communications-equipment interconnects are adopting PCI Express Gen6 supporting faster speeds of 64 GT/s; multi-channel technologies are also being deployed. Anritsu’s Signal Quality Analyzer-R MP1900A series is a high-performance BERT with 8 slots for modules, such as PPG, ED and Jitter/Noise Generator, to expand measurement applications supporting signal integrity analyses of ever-faster devices. In addition to Physical layer measurement functions for broadband network interfaces, the all-in-one MP1900A supports PCI Express bus, etc., interface measurements.
Target Applications
100 GbE/200 GbE/400 GbE/800 GbE, CEI-25G/28G/56G/112G, InfiniBand EDR/HDR, Fibre Channel, PCI Express Gen1/2/3/4/5/6, Thunderbolt 1/2/3, USB3.2/4 Type C, SAS-3/-4, DP1.4, Optical module, SERDES, AOC, High-speed Interconnect
PAM4 Test Solution
- 512 Gbit/s max. transmission capacity
- PAM4 PPG/ED (MU196020A/MU196040A)
- Baud rate of 2.4 to 64.2 Gbaud*1
- Multichannel Scalability 4ch PAM4/NRZ NEW
- High-speed Tr/Tf of 8.5 ps (20 to 80%)
- Low Intrinsic Jitter output of random Jitter 170 fs rms (typ.)
- Low noise and low distortion high-quality data output
- 4Tap Emphasis (20-dB Range)
- ISI adjustment function NEW
- FEC pattern generation NEW
- Stressed margin BER < E-12*2
- Built-in Clock Recovery
- PAM4 pattern editor and symbol error measurement
- Jitter Addition, Jitter Tolerance measurement functions (SJ/RJ/BUJ/SSC)
- Voltage Noise Addition function (Common/Differential/White Noise)
- Jitter Tolerance measurement using DUT BER counter function NEW
*1: Future support for ED (Over 32.1G)
*2: At PAM4 Stressed waveform input refer to CEI

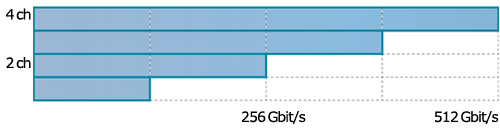

PAM4 Solution (Max. 64 Gbaud at 1CH)
High-Speed Serial BUS Test Solution (PCI Express, USB, Thunderbolt)
- 512 Gbit/s max. transmission capacity, one main frame expandable to 16ch (filling 8 slots with 32 Gbit/s 2 ch PPG)
- All-in-one support for both high-speed Ethernet and PCI Express interface tests
- New wideband 32 Gbit/s SI PPG/ED (MU195020A/MU195040A)
- Bit rate of 2.4 Gbit/s to 32.1 Gbit/s
- NRZ/PAM4 Support
- 10Tap Emphasis
- Variable ISI function
- Multi-band CTLE (8 Gbit/s, 16 Gbit/s, 28 Gbit/s bandwidths)
- Low Intrinsic Jitter output of random Jitter 115 fs rms (typ.)
- High-sensitivity Data input of 15 mV typ. (EYE Height)
- 1ch/2ch Selection
- PCI Express Link Training, LTSSM analysis (using MU195020A/MU195040A/MX183000A-PL021)
- USB Express Link Training, LTSSM analysis (using MU195020A/MU195040A/MX183000A-PL022)
- Jitter Addition, Jitter Tolerance measurement functions (SJ/RJ/BUJ/SSC, using MU181500B/MX183000A-PL001)
- Voltage Noise Addition function (Common/Differential/White Noise, using MU195020A/MU195050A)

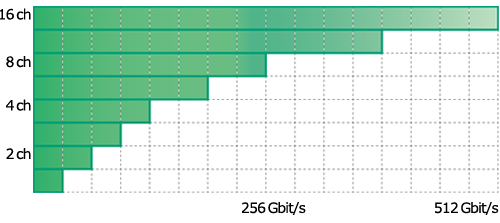

NRZ Solution (Max. 32 Gbit/s at 1ch)
Typical Specifications
Signal Quality Analyzer-R MP1900A
|
Item |
Specification |
|---|---|
|
LCD |
12.1-inch, WXGA 1280 x 800 |
|
Remote Interface |
GPIB, LAN |
|
Module Slots |
8 |
|
External Peripheral I/F |
USB x6, VGA x1, HDMI x1 |
|
OS |
Windows Embedded Standard 7 |
|
Power |
100V(ac) to 120V(ac)/200V(ac) to 240 V(ac) 50 Hz to60 Hz |
|
Power Consumption |
1350 VA max. |
|
Dimensions/Mass |
340 (W) x 222.5 (H) x 451 (D) mm/20 kg max. (excluding modules) |
Noise Generator MU195050A
|
Item |
Specification |
|---|---|
|
No. of Channels |
2 |
|
Insertion Loss |
-3 dB |
|
CMI |
0.1 GHz to 1 GHz/1 GHz to 6 GHz |
|
DMI |
2 GHz to 10 GHz |
|
White Noise |
10 MHz to 10 GHz |
|
Crest Factor |
>5 |
PAM4 PPG MU196020A
|
Item |
Specification |
|---|---|
|
Operation Rate (PAM4/NRZ) |
2.4 Gbaud to 32.1/58.2/64.2 Gbaud (option selection) |
|
No. of Channels |
1 |
|
Output Amplitude |
70 mVp- to 800 mVp-p (Single-end) 140 mVp- to 1600 mVp-p (Differential) |
|
Offset |
-2 V to +3.3 V |
|
Emphasis |
4 Tap, -20 to +20 dB |
|
Channel Emulator |
Generates waveform with insertion loss and simulates waveform with corrected insertion loss Set by loading S-Parameter file (S2 P, S4 P) |
|
ISI |
Simulates ISI generation waveform Set using loss (–8.00 to 8.00 dB) at CEI-specified Nyquist frequency Used in combination with channel board, such as J1800A/J1758A (optional accessories parts), or Noise Module MU195050A |
|
Independently Variable PAM4 3 Eye |
20 to 50% (PAM4 Amplitude 0/3 level = 100%) |
|
PAM4 Pattern |
SSPRQ, PRBS13Q, PRBS31Q, RS-FEC, etc. |
|
PAM4 Pattern Error Addition |
MSB Error, LSB Error, LSB&MSB Error, RS-FEC Symbol Error |
|
Tr/Tf (20 to 80%) |
8.5 ps (typ., NRZ) |
|
Random Jitter |
170 fs rms (typ., NRZ) |
|
I/O Connector |
V (f) |
PAM4 ED MU196040B
|
Item |
Specification |
|---|---|
|
Operation Rates (PAM/NRZ) |
2.4 to either 32.1 Gbaud, or 58.2 (PAM4)/64.2 (NRZ) Gbaud (option selection) |
|
No. of Channels |
1 |
|
Input Amplitude |
NRZ: ≤32.1G: 0.05 to 1.0 Vp-p; >32.1G: 0.1 to 1.0 Vp-p PAM4: ≤32.1G: 0.3 to 1.0 Vp-p; >32.1G: 0.4 to 1.0 Vp-p |
|
Input Sensitivity (Eye Height) |
NRZ: 19 mV @ 26.5625 Gbaud; 21 mV @ 53.125 Gbaud PAM4: 23 mV @ 26.5625 Gbaud; 36 mV @ 53.125 Gbaud |
|
Clock Recovery (Option) |
2.4 to 32.1 Gbaud; 51 to 58.2 Gbaud |
|
Equalizer (Option) |
Low-frequency Equalizer (≤1 GHz, 2 dB typ.) + DFE (1.4 dB typ.) |
|
PAM4 Patterns |
SSPRQ, PRBS13Q, PRBS31Q, etc. |
|
PAM4 Counter |
MSB, LSB, Symbol 0 to 3 (Option) |
|
Input Connector |
V (f) |
21G/32G bit/s SI PPG MU195020A
|
Item |
Specification |
|---|---|
|
Operation Bit Rate (NRZ) |
2.4 Gbit/s to 21 Gbit/s or 32.1 Gbit/s |
|
No. of Channels |
1 or 2 |
|
Output Amplitude |
0.1 Vp-p to 1.3 Vp-p (Single-end) 0.2 Vp-p to 2.6 Vp-p (Differential) |
|
Emphasis |
10Tap |
|
Channel Emulator |
Normal: Emulates Insertion Loss using S-parameters Inverse: Performs De-Emphasis compensation for S-parameter Insertion Loss S-Parameter file: S2P,S4P |
|
ISI |
Emulates output for ISI using CEI-28G/25G Nyquist frequency loss setting Supports loss control in combination with J1758A ISI Board accessory Insertion Loss setting：1.5 to 25 dB, 0.01 dB step, Nyquist frequency 0 to 25 dB, 0.01 dB step, 1/2 Nyquist frequency |
|
Tr/Tf (20% – 80%) |
12 ps (typ.) |
|
Random Jitter |
115 fs rms (typ.) |
|
PCIe and USB Link Training |
Supported（MX183000A-PL021/PL022/PL025） |
|
Output Connector |
K (f) |
21G/32G bit/s SI ED MU195040A
|
Item |
Specification |
|---|---|
|
Operation Bit Rate (NRZ) |
2.4 Gbit/s to 21 Gbit/s or 32.1 Gbit/s |
|
No. of Channels |
1 or 2 |
|
Input Amplitude |
0.05 Vp-p to 1.0 Vp-p (Single-End) 0.1 Vp-p to 2.0 Vp-p (Differential) |
|
Input Sensitivity (Eye Height) |
15 mV (Eye Height 28.1 Gbit/s) 30 mV/Eye（28.1 Gbaud, PRBS15, PAM4） |
|
CTLE |
Peak Frequency 14, 8, 4 GHz Gain 0 to –12 dB |
|
Clock Recovery |
Yes, SSC support |
|
PCIe and USB Link Training |
Supported（MX183000A-PL021/PL022/PL025） |
|
Ouput Connector |
K (f) |
Modules for the MP1800A series can be used in the MP1900A. Refer to the selection guide for more details.

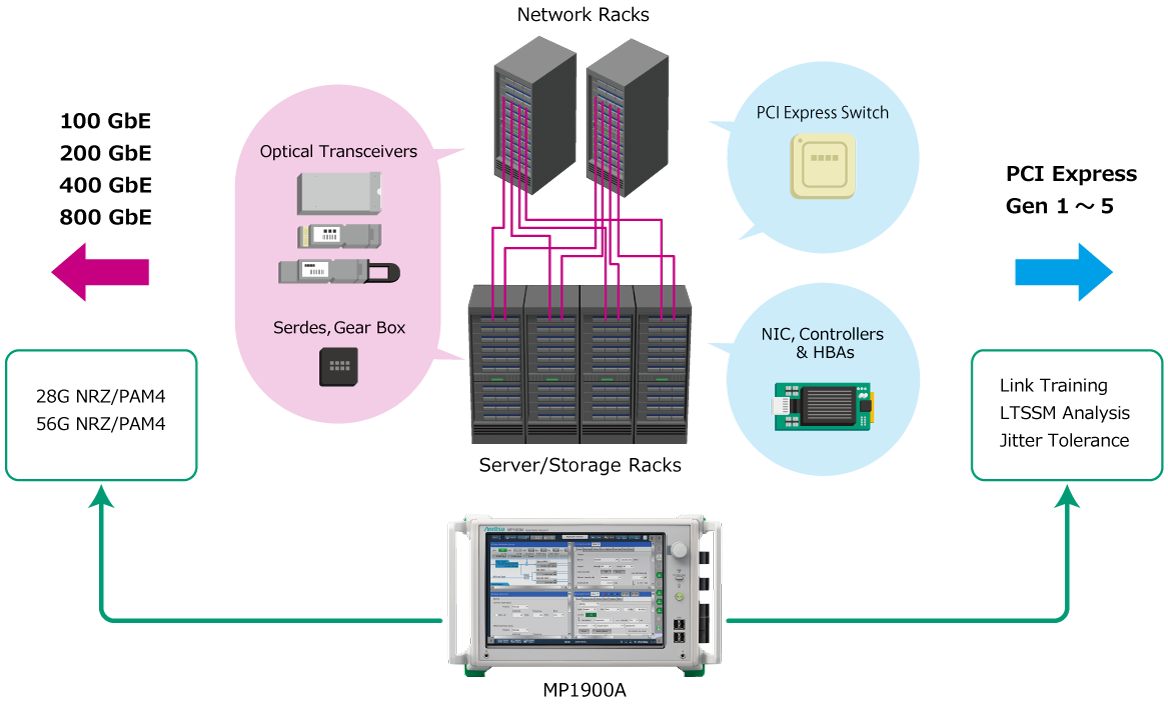

Applications
The MP1900A provides solutions for:
Tektronix and Anritsu Solution: PCI Express 5.0 Test System
Teledyne LeCroy and Anritsu Solution: PCI Express and Type-C Interface Test System
PAM4 BERT for 200G/400G
High Speed Serial Bus BERT for PCIe®, USB and Thunderbolt™
More Product Information
- High signal fidelity to 4 GHz bandwidth
- Low circuit loading – High input impedance and low capacitance
- 4 GHz, 2.5 GHz, 1.5 GHz and 1 GHz models
- 1 MΩ input resistance
- 0.6 pF (4 GHz) and 0.9 pF input capacitance
- ± 8 V input dynamic range, ± 12 V offset range
- Wide variety of tips and grounds
- Easy to use, integrated with oscilloscope
- SPA available from 70KHz to 20/40/70/110/125/145 and 220GHz. Also available for banded configuration to 1.1THz.
- Dual SPA mode available: suitable for Mixers/Amplifier/ Harmonics /Spurious testing.
- SPA available on all ports. User can define which port to use as SPA port.
- Several detection types available in classical mode: Peak, minimum, RMS, Mean.
- Various math functions can be applied on SPA mode like Min hold/max hold/ user defined equations.
- Sources and receivers can be independently configured. Can be used as Tracking Generator.
- For units that have a dual source, a dual drive option is available. Support for external source control also possible.
- Phase synchronization for units with Dual source available. This feature allows users to control and configure the phase between the two sources.
- Source and receiver attenuator available with VNA can be activated in SPA mode. Recommendation to use option 62 (with attenuator on receiver side) for measuring the spectrum content of high-power devices.
- Software option: easy to install and upgrade existing user equipment.
- Choice of 4 GHz or 6 GHz bandwidth models
- Up to 5 Vpk-pk dynamic range with low noise
- ±3 V offset range
- Low loading and high impedance for minimal signal disturbance
- Ideal for DDR2, DDR3, LPDDR2
- Deluxe soft carrying case
- Innovative QuickLink architecture
- Wide variety of tips and leads
- Solder-In Lead
- Optional Positioner (Browser) Tip
- Quick Connect Lead
- Square Pin Lead
- HiTemp Solder-In Lead
-
High SNR mode (up to 24 dB better signal-to-noise ratio)
-
Low-Noise Binning Mode
-
Smear reduction
-
Shading correction
-
Area of interest (AOI), separate AOI for auto features
-
Binning
-
Decimation
-
Auto gain (manual gain control: 0 to 32 dB)
-
Auto exposure (39 µs to 67 s)
-
Auto white balance
-
Look-up table (LUT)
-
Hue, saturation, color correction
-
Reverse X
-
Deferred image transport
-
Trigger programmable, level, single, bulk, programmable delay
-
Sequence mode (changes the camera settings on the fly)
-
SIS (secure image signature, time stamp for trigger, frame count)
-
Storable user sets
- Accurate & reliable time data from a trusted source
- Remote configuration and status via web browser, remote monitoring with SNMP
- Synchronization between users – eradicates discrepancies
- System time stamping, such as e-commerce transactions, e-mail sent & received, is highly accurate
- Automatic systems procedures such as backups occur at the correct time and in the correct order
- Additional time signal outputs can feed to other systems
- Multiple time source fall back and priority configuration can ensure high synchronization availability
- Various oscillator choices allow for long holdover to maintain time accuracy when synchronization signals are absent
-
High SNR mode (up to 24 dB better signal-to-noise ratio)
-
Low-noise binning mode
-
Shading correction
-
Defect pixel correction
-
Area of interest (AOI), separate AOI for auto features
-
Binning
-
Decimation
-
Auto gain (manual gain control: 0 to 24.4 dB)
-
Auto exposure (31 µs to 67 s)
-
Auto white balance
-
Look-up table (LUT)
-
Hue, saturation
-
Color correction
-
Local color anti-aliasing
-
Reverse X/Y
-
Deferred image transport
-
Trigger programmable, level, single, bulk, programmable delay
-
Sequence mode (changes the camera settings on the fly)
-
SIS (secure image signature, time stamp for trigger, frame count etc.)
-
Storable user sets
Scope of delivery
-
Camera and IEEE 1394b cable (other configurations on request)
eZ Processing is the solution for telemetry data processing, analysis and display (real time or playback). It allows the capture of the data either from a PCM signal or directly through data sent on Ethernet (IRIG 106 Chapter 10) by the receiver.
It performs the frame synchronization, Engineering Unit conversion, data display and storage, as well as data subset dissemination to dedicated analysis tools. It can accommodate multiple display stations, each having selectable parameters and displays. When used in a system with Safran Defense & Space, Inc. (formerly Safran Data Systems, Inc.) data acquisition units like the XMA or MDR, the software parameter database is automatically updated by eZ configuration software, reducing the set-up time and preventing all errors.
Southwest Microwave’s high performance End Launch connectors are designed to provide low VSWR, mode free wideband response to 110 GHz for single-layer and multi-layer printed circuit boards where the high frequency signal is on the top layer. Available in SMA (27 GHz), 2.92 mm (K) (40 GHz), 2.40 mm (50 GHz), 1.85 mm (V) (67 GHz) and 1.0 mm (W) (110 GHz).
Male and female options along with narrow body and bulkhead feed-through. Unique clamping mechanism accommodates board thickness up to .300” (7.62 mm). Robust, reusable and repairable. Multiple launch configurations provide the best possible match to circuit layout. Works on microstrip and grounded coplanar waveguide (GCPW) designs. Signal-layer microstrip and GCPW test boards available. Soldering is optional.
Design Assistance:
- Printed circuit board layout and connector part number recommendation
- 3D models for mechanical layout
- HFSS models (version 18.0 or newer) for EM simulations upon request and availability
- Frequency range of 9 kHz to 3.6 GHz/6 GHz/26.5 GHz/44.5 GHz; 44.5 GHz max. built-in preamp option
- Best close-in phase noise performance in middle range signal analyzer/spectrum analyzer:
- –123 dBc/Hz (at 1 GHz center frequency, 10 kHz offset frequency with all frequency models)
- –138 dBc/Hz (at 1 GHz center frequency, 10 kHz offset frequency with 3.6 GHz and 6 GHz models, meas.)
- –140 dBc/Hz (at 150 MHz center frequency, 10 kHz offset frequency with 3.6 GHz and 6 GHz models, meas.)
- 31.25 MHz analysis bandwidth (standard); 125 MHz max. (option)
- All-in-one solution with built-in signal generator option supports TRx tests (with 3.6 GHz and 6 GHz models)
- Measurement applications (options): Phase Noise Measurement, Noise Figure Measurement, Vector and Analog Modulation Analysis, BER Measurement, Pulse Radar Measurement Function
