AVT - Stringray F-046 IEEE 1394b camera - Sony ICX415
-
High SNR mode (up to 24 dB better signal-to-noise ratio)
-
Low-noise binning mode
-
Shading correction
-
Defect pixel correction
-
Area of interest (AOI), separate AOI for auto features
-
Binning
-
Decimation
-
Auto gain (manual gain control: 0 to 24.4 dB)
-
Auto exposure (31 µs to 67 s)
-
Auto white balance
-
Look-up table (LUT)
-
Hue, saturation
-
Color correction
-
Local color anti-aliasing
-
Reverse X/Y
-
Deferred image transport
-
Trigger programmable, level, single, bulk, programmable delay
-
Sequence mode (changes the camera settings on the fly)
-
SIS (secure image signature, time stamp for trigger, frame count etc.)
-
Storable user sets
Scope of delivery
-
Camera and IEEE 1394b cable (other configurations on request)

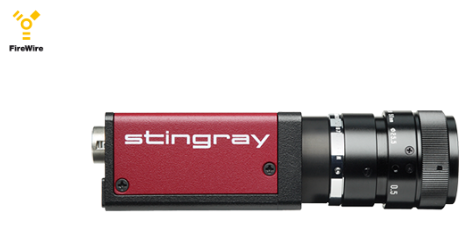

The Stingray F-046B/F-046C is a IEEE 1394b camera with a sensitive Sony ICX415 HAD CCD sensor, and runs at 61 frames per second at full resolution. Thanks to its comprehensive image pre-processing functions, it delivers an outstanding high image quality.
Options:
- IEEE 1394b connectors: 2 x copper (daisy chain), Hirose power: out
- Various IR cut/pass filters, various lens mounts
- Angled head, board level version, white medical housing
Interface
IEEE 1394b - 800 Mb/s, 2 ports, daisy chain
Resolution
780 (H) × 580 (V)
Sensor
Sony ICX415
Sensor type
CCD Progressive
Sensor size
Type 1/2
Pixel size
8.3 µm x 8.3 µm
Lens mount (default)
C-Mount
Max. frame rate at full resolution
61 fps
ADC
14 Bit
Image buffer (RAM)
Up to 128 MByte
Output
Bit depth
8-14 Bit
Monochrome pixel formats
Mono8, Mono12, Mono16
RGB color pixel formats
RGB8
Raw pixel formats
Raw8, Raw12, Raw16
General purpose inputs/outputs (GPIOs)
Opto-isolated I/Os
2 inputs, 4 outputs
RS232
1
Operating conditions/dimensions
Operating temperature
+5 °C to +45 °C
Power requirements (DC)
8 V to 36 V
Power consumption
<4 W (@ 12 VDC)
Mass
92 g
Body dimensions (L × W × H in mm)
72.9 × 44 × 29 (including connectors)
Regulations
CE: 2014/30/EU (EMC), 2011/65/EU (RoHS); FCC Class B
Quantum efficiency
Application
Application
Application
Application
Application
Technical papers, knowledge base
3D CAD files (STEP)
Please right-click the link of a 3D camera model and select save as to download the file. After downloading, unzip the STEP file. You need a 3D CAD viewer application to view and measure the STEP files. Download a STEP viewer free of charge: http://www.ida-step.net/
- Stingray, C-Mount
- Stingray, GOF, Board level, C-Mount
- Stingray, Compact, C-Mount
- Stingray, GOF, C-Mount
- Stingray, W90, C-Mount
- Stingray, W90 S90, C-Mount
- Stingray, GOF, W90 S90, C-Mount
- Stingray, GOF, W90, C-Mount
- Stingray, W270, C-Mount
- Stingray, W270 S90, C-Mount
- Stingray, GOF, W270 S90, C-Mount
- Stingray, GOF, W270, C-Mount
- Stingray, Board level, C-Mount
Software and firmware
Vimba is our current future-proof SDK.
You can also download legacy software for 1394 cameras.
To obtain firmware for your 1394 camera, please contact our technical support team.
