AVT - Prosilica GC 1350 1.4 Megapixel CCD camera with GigE Vision
-
Compact
-
20 fps @ 1.4 Megapixel
-
Rugged housing
-
Video-type auto iris
-
Video-type auto iris
-
ROI, DSP subregion (selectable ROI for auto features)
-
Binning
-
Auto gain (manual gain control: 0 to 25 dB)
-
Auto exposure (manual exposure controls: 12 µs to 116.8 s)
-
Auto white balance
-
StreamBytesPerSecond (easy bandwidth control)
-
Stream hold
-
Sync out modes: Trigger ready, input, exposing, readout, imaging, strobe, GPO
-
Global shutter (digital shutter)
-
Recorder and Multiframe acquisition modes
-
Event channel
-
Chunk data
-
Storable user sets
Prosilica GC1350 is a high-resolution CCD camera with Gigabit Ethernet interface (GigE Vision). GC1350 incorporates a high-quality Sony CCD sensor providing excellent monochrome and color image quality. GC1350 runs 20 frames per second at 1360 x 1024 resolution and even faster with region of interest readout.
Options
- IR cut filter, CS-Mount
Interface
IEEE 802.3 1000baseT
Resolution
1360 × 1024
Sensor
Sony ICX205
Sensor type
CCD Progressive
Sensor size
Type 1/2
Cell size
4.65 µm
Lens mount
C (adjustable)
Frame rate
20 fps
ADC
12 Bit
On-board FIFO
16 Mbyte
Output
Bit depth
8/12 Bit
Mono modes
Mono8, Mono12, Mono12Packed
Color modes RGB
RGB8Packed, BGR8Packed
Raw modes
BayerRG8, BayerRG12, BayerGR12Packed
General purpose inputs/outputs (GPIOs)
TTL I/Os
1
Opto-isolated I/Os
1 input, 1 output
RS-232
1
Operating conditions/dimensions
Operating temperature
0°C ... +50°C
Power requirements (DC)
5-25 VDC*
Power consumption (@12 V)
3 W
Mass
100 g
Body dimensions (L × W × H in mm)
59 × 46 × 33 including connectors, w/o tripod and lens
Regulations
CE, FCC Class A, RoHS (2011/65/EU)

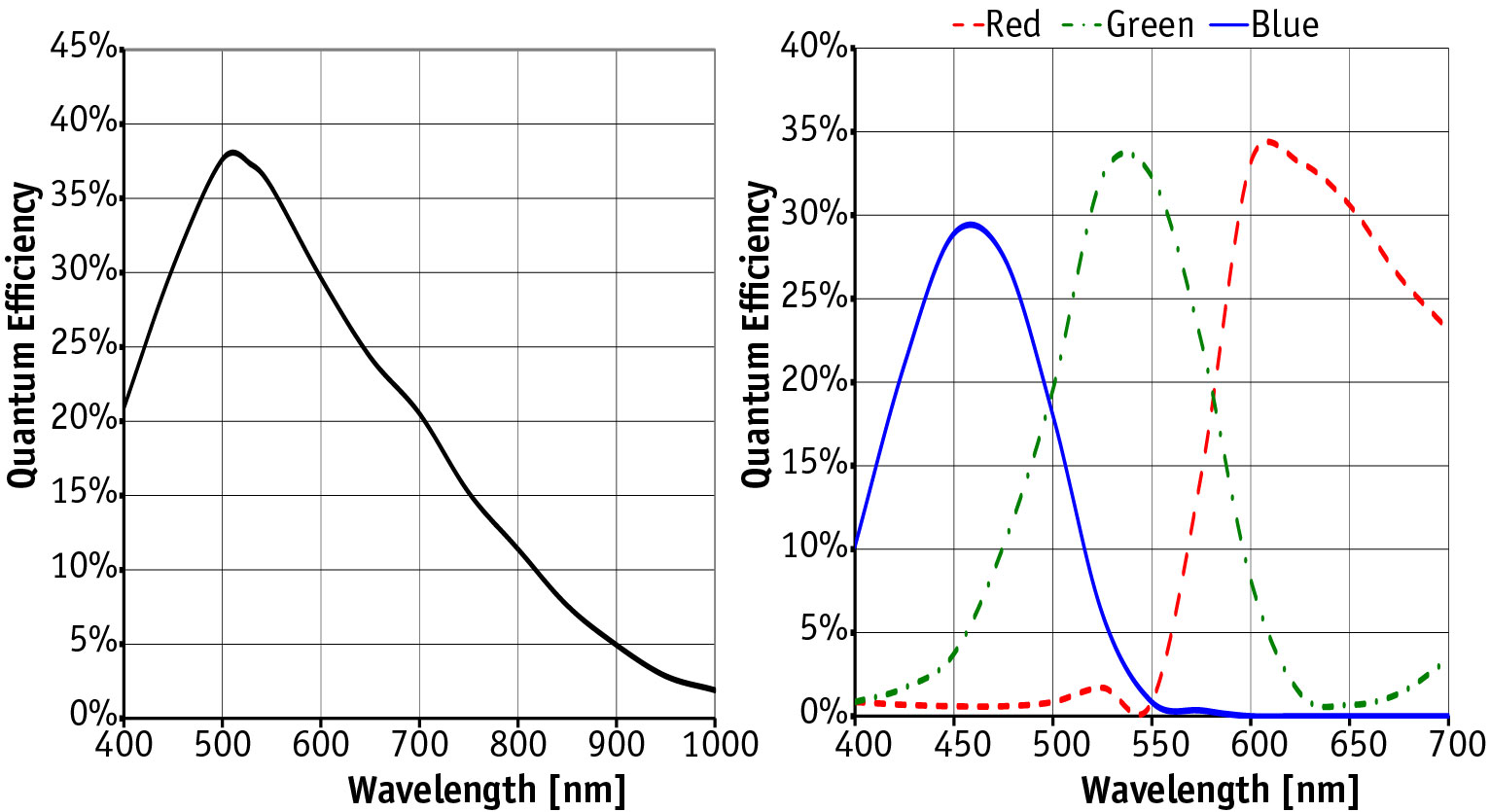

Spectral Response
Application
Application
Application
Application
Application
Application
3D CAD files (STEP)
Please right-click the link of a 3D camera model and select save as to download the file. After downloading, unzip the STEP file. You need a 3D CAD viewer application to view and measure the STEP files. Download a STEP viewer free of charge: http://www.ida-step.net/
- GC650 C-Mount
- GC650C C-Mount
- GC655 C-Mount
- GC655C C-Mount
- GC660 C-Mount
- GC660C C-Mount
- GC750 C-Mount
- GC750C C-Mount
- GC780 C-Mount
- GC780C C-Mount
- GC1020 C-Mount
- GC1020C C-Mount
- GC1280 C-Mount
- GC1290 C-Mount
- GC1290C C-Mount
- GC1350 C-Mount
- GC1350C C-Mount
- GC1350CH C-Mount
- GC1350H C-Mount
- GC1380 C-Mount
- GC1380C C-Mount
- GC1380CH C-Mount
- GC1380H C-Mount
- GC1600 C-Mount
- GC1600C C-Mount
- GC1600CH C-Mount
- GC1600H C-Mount
- GC2450 C-Mount
- GC2450C C-Mount
Software and firmware
Vimba is our current future-proof SDK.
Other SDKs and tools are available on our Software downloads webpage.
GigE camera firmware is available on our Firmware webpage.
