Absolute EMC - RF Test Cables
See "Specifications & Details" tab for more information.
|
AC Absolute COAX Cables |
|---|
|
The Absolute Coax series of cables are designed specifically to meet the requirements for EMC testing. Each industry has requirements that are unique. EMC is no different. Absolute EMC has gone through the selection process to only offer the best performance quality and value. Taking away the need to spend hours searching and looking through specs and manufacturers to find what you hope is the best value. 4 options are available fitting most EMC applications. |
|
Absolute Coax A (AC-A) • Cost Effective • Ultra-Flexible • Double Shielded Outer Conductor Offering an excellent cost-performance ratio. Its use can cover up to 18GHz. It is ideal for short lengths and interconnection where losses are not so important. A great choice for applications with medium power and low frequency. |
|
Absolute Coax B (AC-B) • Ultra Low Loss • Low VSWR • Super Flexible • Light Weight • High Frequency Ultra-Low loss coax for use up to 40GHz. This coax is ideally suited for high-frequency emissions testing above 18GHz. |
|
Absolute Coax C (AC-C) • Ultra Low Loss • Low VSWR • Super Flexible • Light Weight • High Power Best ultra-low loss coax Ideal for high power handling and for low loss applications up to 18GHz. If above 18GHz is not required, this is the best coax with the best performance available. |
|
Absolute Coax D (AB-D) • Ultra Low Loss • Low VSWR • Super Flexible • Light Weight Best ultra-low loss coax Ideal for low low-loss applications up to 6GHz. If applications do not require over 6GHz & very high power, this is the best coax with the best performance available. |
|
Specification |
AC-A |
AC-B |
AC-C |
AC-D |
|---|---|---|---|---|
|
Maximum Frequency |
18 GHz |
40 GHz |
18 GHz | 6 GHz |
|
Impedance |
50 Ω nominal |
50 Ω nominal |
50 Ω nominal | 50 Ω nominal |
|
Max Power @ 1GHz |
410 Watts |
590 Watts |
1800 Watts |
750 Watts |
|
Shielding Effectiveness |
-90 dB minimum (cable only) |
-110 dB minimum (cable only) |
,-110 dB minimum (cable only) |
>90dB minimum (cable only) |
|
Dielectric Withstanding Voltage |
3.0 kV at 60 Hz |
7.0 kV at 60 Hz |
15.0 kV at 60 Hz |
8.0 kV at 60 Hz |
|
Capacitance |
29 pF/ft (95.1 pF/m) |
24.0 pF/ft (78.7 pF/m) |
24.0 pF/ft (78.7 pF/m) |
23.4 pF/ft (76.6 pF/m) |
|
Finished Outer Diameter |
0.163 in (0.414 cm) |
0.144 in (0.366 cm) |
0.310 in (0.787 cm) |
0.59 in (1.5 cm) |
|
Static Bend Radius |
0.8 in (2.032 cm) |
0.75 in (1.905 cm) |
1.75 in (4.445 cm) |
1.5 in (3.81 cm) |
|
Weight with Standard Jacket/Armor |
0.03 lbs/ft (0.048 kg/m) |
0.02 lbs/ft (0.028 kg/m) |
0.09 lbs/ft (0.134 kg/m) |
0.165 lbs/ft (0.25 kg/m) |
|
Operating Temp. Range |
,-85 to 392° F (-65 to 200° C) |
,-85 to 392° F (-65 to 200° C) |
,-85 to 392° F (-65 to 200° C) |
-40 to 185° F (-40 to 85° C) |
|
Inner Conductor |
Solid Ag-plated Cu-clad Steel |
Solid Ag-plated Cu |
Solid Ag-plated Cu |
Stranded BC |
|
Dielectric |
PTFE |
PTFE Tape |
PTFE Tape |
Foam Polyethylene |
|
Outer Conductor |
Ag-plated Cu Flat Braid/ Ag-plated Cu Round Braid |
Ag-plated Cu Strip/ Ag-plated Cu Flat Braid |
Ag-plated Cu Strip/ Ag-plated Cu Flat Braid |
Aluminum Tape Tinned Copper Braid |
|
Finish |
FEP (Fluorinated ethylene propylene) |
FEP (Fluorinated ethylene propylene) |
FEP (Fluorinated ethylene propylene) |
Thermoplastic Elastomer |
|
Color |
Green Jack with Purple Strain Reliefs |
Green Jack with Purple Strain Reliefs |
Green Jack with Purple Strain Reliefs |
Thermoplastic Elastomer |
|
Specification |
AC-A |
AC-B |
AC-C |
AC-D |
|---|---|---|---|---|
|
Part # Standard Connectors* |
50591 SMA(m) SMA(m) 50592 TYPE N(m) TYPE N(m) 50593 BNC(m) BNC(m) 50595 TYPE N(m) SMA(m) |
50583 SMA 2.4(m) SMA 2.4(m) 50586 SMA 2.92/K(m) SMA 2.92/K(m) 50587 SMA 3.5(m) SMA 3.5(m) 50588 SMA(m) SMA(m) 50914 TYPE N(m) TYPE N(m) 50916 TYPE N(m) SMA(m) |
50589 TYPE N(m) TYPE N(m) 50590 7-16DIN(m) 7-16DIN(m) 50594 TYPE N(m) SMA(m) | 50915 TYPE N(m) TYPE N(m) |
|
Standard Lengths* |
19, 39, 59, 79, 118, 197, 276, 393, 590 inches (0.5, 1, 1.5, 2, 3, 5, 7, 10, 15 meters) |
|||
|
Included in delivery |
Coax imprinted with Model and Serial NumberS Parameter (loss/attenuation) data will be Emailed with each delivery. |
|||
|

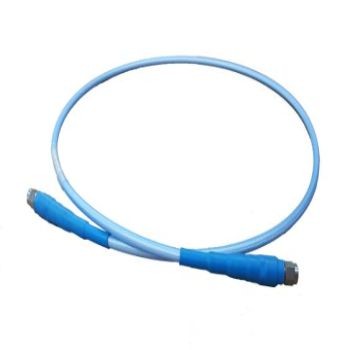

Absolute EMC 105 26.5 GHz Low-Loss Coax Cables |
|---|
|
The Absolute EMC105 series of cables is a very high-performing Coax operating up to 26.5GHz with incredibly low losses. It can be used for high-power applications resulting in more power reaching your antenna. Also ideal for emissions testing up to 18GHz. allowing for long-distance runs with less loss. |
Technical data
- Weight 65.6 g/m
- Outer diameter -------------- 5.33 mm
- Electrical specifications
- Impedance ------------------- 50Ω
- Frequency max ------------- 26.5GHz
- Power max (CW)------------ 248@10GHz
Each cable is provided with VNA Measurement: S11, S12, S21, S22
Connectors available: SMA(f), 3.5mm, 2.9mm,
Standard Lengths m(in): 0.5(19), 1(39), 1.5(59), 2(79), 3(118), 5(197), 7(276), 10(393), 15(590) Other lengths available
|

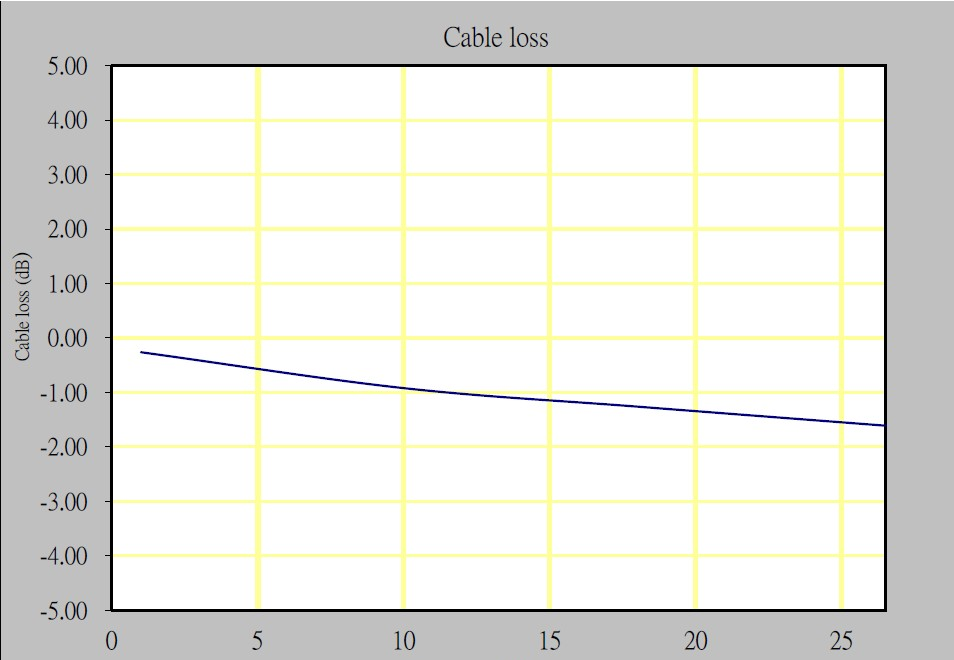

Frequency (GHz) |
1 |
10 |
18 |
26.5 |
|---|---|---|---|---|
|
Attenuation type. (dB/m) |
0.26 |
0.92 |
1.28 |
1.61 |
|
Power (W) |
248 |
Document
More Product Information
- 4-Channel, 204.8 Ksa/s per channel, 24-Bit DACs
- -115 dB spurious free dynamic range
- Integrated 2-Channel 64-bit tachometer
- Integrated 4-Channel DIO
- Tight synchronization with DSA analyzers
- Ideal for rotational measurement, and stimulus-response applications such as vibration test
- Output modes including Sine, Burst Sine, Chirp, Burst-random and continuous random
The CORTEX RSR-RF (-40 or -200) stands as a digital recorder that plays a vital role in capturing and reproducing the RF analog signal received by the antenna before any processing occurs.
It’s an essential component in a Telemetry Station, ensuring the utmost availability of crucial data, particularly in cases where on-board recording is not feasible.
Data collected in-flight offers extensive post-processing flexibility. You can fine-tune various settings in the receiver, the bit synchronizer, and the decommutator to maximize the extraction of data, a feat achievable only with RF recording. Furthermore, it serves as an invaluable tool for test range qualification ahead of test flights.
20 ppm calibrator of DC process signals designed for calibration of evaluation units and process multimeters under demanding industrial conditions.
- 20 ppm accuracy
- 13°C - 33°C reference temp. range
- 100 V @ 25 mA output capacity
- High performance power bypassing provides low-impedance and resonant-free connections to 20 GHz
- RF bandwidth to 500 MHz
- Long probe life: > 250,000 contacts
- Beryllium-copper tips for gold pads or tungsten for aluminum pads
- Oscillation-free testing of wide-bandwidth analog circuits
- Use with ACP series probes to provide functional at-speed testing for known-good-die
- Mix multiple contact types: Ground, Power (Standard or Eye-Pass), Logic/Signal
- Low and repeatable contact resistance on aluminum pads ( < 0.25 Ω on Al, < 0.01 Ω on Au)
Pylons are stationary metal Device Under Test support structures designed to minimize measurement signal backscattering.
Their shapes, sizes, and construction specifications are determined by requirements such as maximum DUT size, its mechanical properties, and minimum rotator size.
- 10kHz to 30MHz
- Adjustable height 1.5 to 3.5m Strip-line
- Full vehicle testing
- Mil-STD-464 & ISO 11451-2
- Available in single and dual pack versions
- Sensor simulation available to provide thermistor, strain gauges, heater loads, and cell bypass/short.
- Battery behavior easily modified via spreadsheet download to simulate any battery topology including Nickel Metal Hydride, Lithium Ion, and Nickel Cadmium
- Flexible Database Operation
- Fully Programmable
- Completely Configurable
- Attention To Spacecraft Safety
- Eliminates the need for test flight batteries and their associated issues
Resistance decade box designed for RTD and other resistance-based sensors' simulation. 0.1°C accuracy and 5W load capacity.
- Real resistors switched by relays
- Custom temperature scales
- No residual resistance
- 5 W load capacity
- Six different languages
