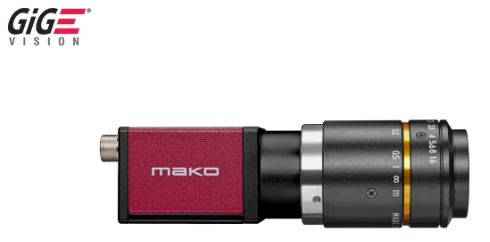

AVT - Mako G-032 GigE camera with Sony ICX424 CCD sensor, 102.3 fps
-
Ultra-compact design
-
Affordable
-
Power over Ethernet
-
High frame rate
-
Monochrome (G-032B) and color (G-032C) models
-
GigE Vision interface with Power over Ethernet
-
Screw mount RJ45 Ethernet connector for secure operation in industrial environments
-
Supports cable lengths up to 100 meters (CAT-6 recommended)
-
Comprehensive I/O functionality for simplified system integration
-
Popular C-Mount lens mount
-
Easy camera mounting via standard M3 threads on top and bottom of housing or optional tripod adapter
-
Easy software integration with Allied Vision's Vimba Suite and compatibility to the most popular third party image-processing libraries.
-
Select between B 270 ASG protection glass and filter types: Jenofilt 217 IR cut filter, Hoya C-5000 IR cut filter, RG715 IR pass filter, or RG830 IR pass filterr
Mako G-032 is a 0.3 megapixel GigE machine vision camera that incorporates the high quality Type 1/3 (6.0 mm diagonal) Sony ICX424 CCD sensor with HAD technology. At full resolution, this camera runs 102.3 frames per second. With a smaller region of interest, higher frame rates are possible.
Mako G cameras have the same ultra-compact form factor and the same mounting positions as many analog cameras. All models include Power over Ethernet, three opto-isolated outputs, and a 64 MB image buffer. The image quality profits from the precisely aligned sensor. By default monochrome models ship with no optical filter and color models ship with a Type Hoya C-5000 IR cut filter.
See the Modular Concept for lens mount and optical filter options.
See the Customization and OEM Solutions webpage for additional options.
Interface
IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE)
Resolution
658 (H) × 492 (V)
Sensor
Sony ICX424
Sensor type
CCD Progressive
Sensor size
Type 1/3
Pixel size
7.4 µm × 7.4 µm
Shutter mode
Global shutter
Lens mounts (available)
C-Mount, CS-Mount, S-Mount
Max. frame rate at full resolution
102.3 fps
ADC
14 Bit
Image buffer (RAM)
64 MByte
Imaging performance
Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1 standard for characterization of image sensors and cameras. Measurements are typical values for monochrome models measured at full resolution without optical filter. Contact Sales or AE for more information.
Quantum efficiency at 529 nm
50 %
Temporal dark noise
14.7 eˉ
Saturation capacity
17800 eˉ
Dynamic range
61.4 dB
Absolute sensitivity threshold
15.2 eˉ
Output
Bit depth
8/12 Bit
Monochrome pixel formats
Mono8, Mono12, Mono12Packed
Raw pixel formats
BayerRG8, BayerRG12, BayerRG12Packed
Operating conditions/dimensions
Operating temperature
+5 °C to +45 °C housing temperature
Power requirements (DC)
12 to 24 VDC AUX or 802.3at Type 1 PoE
Power consumption
2.4 W at 12 VDC; 2.8 W PoE
Mass
80 g (with C-Mount)
Body dimensions (L × W × H in mm)
60.5 × 29.2 × 29.2 (including connectors)
Regulations
CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class B; CAN ICES-003
Features
Image optimization features:
- Auto gain (manual gain control: 0 to 30 dB; 1 dB increments)
- Auto exposure (manual exposure control: 10 µs to 93 s; 1 µs increments)
- Auto white balance (G-032C only)
- Binning
- Color correction, hue, saturation (G-032C only)
- Gamma correction
- One look-up table
- Region of interest, separate region for auto features
Camera control features:
- Event channel
- Image chunk data
- Storable user sets
- StreamBytesPerSecond (bandwidth control)
- Stream hold
- Sync out modes: Trigger ready, input, exposing, readout, imaging, strobe, GPO
- Temperature monitoring (main board only)
Applications
Mako G-032 is ideal for a wide range of applications including:
- Robotics
- Quality control
- Inspection, surveillance
- Industrial imaging
- Machine vision
- Logistics
Quantum efficiency
Document
Document
Document
Document
Document
Document
Document
3D CAD files (STEP)
Please right-click the link of a 3D camera model and select save as to download the file. After downloading, unzip the STEP file. You need a 3D CAD viewer application to view and measure the STEP files. Download a STEP viewer free of charge: https://www.freecadweb.org/
Software and firmware
Vimba is our current future-proof SDK.
Other SDKs and tools are available on our Software downloads webpage.
GigE camera firmware is available on our Firmware webpage.
