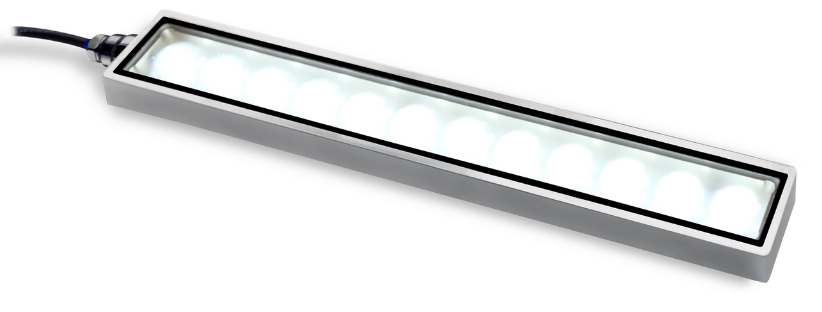

Advanced Illumination - AL247 Series UltraSeal Bar Lights
- UltraSeal Bar Lights are ideal for hygienic inspection environments, aseptic manufacturing, and food and beverage applications. They are IP69K certified to withstand the harshest environments.
- These Bar Lights feature either stainless steel or nickel plated aluminum housings depending on your washdown requirements.
Built for extreme environments, our IP69K certified lights are specifically engineered to withstand everything from prolonged liquid immersion to high-pressure steam cleaning and corrosive washdown solutions.
UltraSeal Bar Lights are ideal for hygienic inspection environments, aseptic manufacturing, and food and beverage applications.
General Specs
|
Electrical Specifications |
Color |
24V Current |
All Other Controls |
|---|---|---|---|
|
455, 470, 505, 530, WHI |
0.37A per 6 inches |
0.35A Max per 6 inches |
|
|
590, 625, 660, 730 |
0.38A per 6 inches |
0.30A Max per 6 inches |
|
|
850, 940 |
0.38A per 6 inches |
0.20A Max per 6 inches |
|
|
Normal Operating Temperature |
0-60 deg C |
||
|
Weight |
11.2oz (317.5g) per 6 inches | ||
|
Standard Cable Information |
2 M long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain |
||
|
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 850, 940 Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 666, 730, WHI | ||
|
Compliance |
CE, RoHS, IEC 62471 |
||
|
IP Rating |
IP69K |
||
|
Lumen Maintenance |
L70 = 50,000 Hours |
||
Mechanical Specs
Optical Specs
Electrical Specs
Control Specs
Part Number Key
CAD Files
Support Materials
More Product Information
- The RL3536 is characterized as an Aimed Dark Field ring light.
- Precisely aimed LEDs provide a specific and repeatable light pattern on the imaging plane.
- Provides up to 8.4kLux at a working distance of 3” (76mm).
- The light is available in a wide range of wavelengths from UV to IR.
- Diffuser and polarizer options are also available.
- The large inner diameter of the ring light can accommodate lenses up to 55mm in diameter.
- The light can also be ordered with an optional mounting ring.
The Focus Compact Model (FCM) utility is a streamlined software package designed to be used with Focus’ AURIGA high-end Pulsed-IV system, that is used to generate Compact Models for transistors from their Pulsed-IV and wideband pulsed s-parameter data.
This is achieved by generating a network of lumped circuit elements that represent accurately the fundamental linear & non-linear behavior of the device over a broad range of bias and power range.
The result of the modeling is a netlist and compatible with- the most common CAD tools used in RF Design; such as AWR Microwave office (MWO) and Keysight PathWave Advanced Design System (ADS).
-
Best solution for high accuracy IV/CV, low-noise and 1/f measurements with PureLine, AutoGuard and next generation MicroChamber technologies
-
Enables up to 5x faster time to accurate data
-
Advanced 4-axis semi-automatic stage for accurate positioning and repeatable probe-to-pad contact
-
RF/microwave device characterization, 1/f, WLR, FA and design debug
-
Wide range of extremly performant, reliable thermal chuck systems from ATT
-
Easy on-screen navigation, wafer mapping, and operation of accessories and thermal systems with Velox
-
User-centered design minimizes training costs and enhances efficiency
See more Key Features on Specifications & Details tab
- The Pulsar 320E provides the ultimate in lighting control for strobe-only, high power applications.
- 2 outputs for controlling 2 lights independently, each capable of 50A @ 100V DC.
- This ultra high intensity line light series is built to handle the most extreme line scan lighting requirements.
- Provides an intensity level of 2,100 klx (working distance of 75 mm).
- Pre-engineered for expandability in 150 mm (6”) increments up to 2400 mm (94.5”).
- Available in multiple wavelengths.
- In the event of abnormally high ambient temperatures, the device automatically shuts down when the housing reaches 60°C and resumes operation at 56°C.
Note: Requires third party power supplies – refer to spec sheet.
- With an intensity of over 150 klx at 300 mm WD in continuous operation, the SL316 UltraSeal Spot Light delivers industry-leading intensity with consistent uniformity.
- Available with narrow, medium, and wide lensing options as well as a non-lensed configuration for high dispersion.
- Configurable in eleven wavelength options.
- Compatible with all Ai inline and discreet control systems. The SL316 can be operated in continuous, gated continuous, pulsed, and adaptive pulsed modes with dimming options for brightness control.
- Up to 20 GHz bandwidth and 80 GS/s sample rate
- The most advanced oscilloscope user interface
- The industry’s only true hardware 14.1 Gb/s serial trigger
- Low Jitter Measurement Floor and exceptional timebase stability
- Comprehensive set of serial data analysis, debug, validation and compliance tools
- Integrated 50 Ω and 1 MΩ inputs for true connection and probing flexibility
- Integrated standard and custom measurements and math functions for unrivaled analysis capability
- Multi-lane serial data eye, jitter and crosstalk analysis
- Real-time de-embedding, emulation, and equalization
- Securely connects the SL112 or SL162 to Moritex, Dolan-Jenner, and Fostec fiber optic light guides
- Set screws are included
- The RL4260 is characterized as a Medium Aimed Bright Field ring light.
- Precisely aimed LEDs provide a level of lighting control not found in traditional illuminators.
- A range of standoffs and fields of view may be specified at the time of order.
- The ring light is available in a wide range of wavelengths from UV to IR, including a 3 channel RGB version.
- Diffuser and polarizer options are also available.
- The large inner diameter of the ring light can accommodate lenses up to 55mm in diameter.
- The light can also be ordered with an optional mounting ring.
