NoiseKen - High Voltage Noise / Car Manufacturer's Standard by FNS-AX4-A20-N2447
This model is for carrying out a high pressure noise test of individual automotive manufacturers' demands. It simulates representative high voltage noise of HV and EV.
- Single-phase 3 wire
- AC85 - 240V16A
- 50/60Hz
- DC125V16A
- Pulse: ~ 500V 50kHz (option)

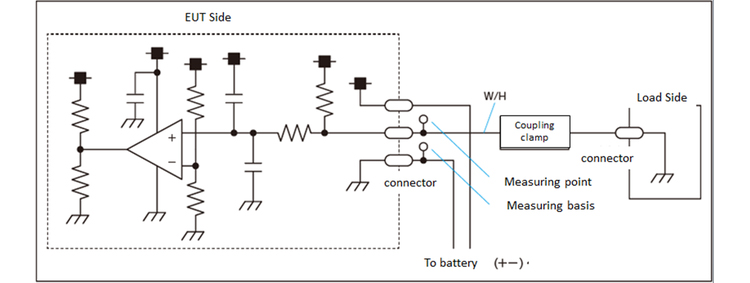

CALIBRATION CIRCUIT (18-N1686)
TESTING CONDITION 1 ( CONTINUAL TESTING)
Noise Waveform (reference)
Testing Level (Continual Testing)
|
Test Level |
Vp-p(V) |
|---|---|
|
1 (battery ECU) |
220 |
|
2 (PCU) |
105 |
|
3 (NAVI) |
15 |
Noise Waveform (continual testing)
Testing Frequency fp condition (Continual Testing)
|
Test Level |
Vp-p(V) |
|---|---|
|
1 (battery ECU) |
220 |
|
2 (PCU) |
105 |
|
3 (NAVI) |
15 |
CONDITION 2 (BURST TESTING)
Noise Waveform (burst testing)
Testing Level (Burst Testing)
|
Test Level |
Vp-p(V) |
|---|---|
|
1 (battery ECU) |
120 |
|
2 (PCU) |
30 |
|
3 (NAVI) |
7.5 |
Test Frequency fp condition (Burst Testing)
|
Test Frequency fp range (kHz) |
100 ~ 1000 (kHz) |
|---|---|
|
Test fp step (kHz) |
10 (kHz) |
|
Test Frequency fp point |
90 frequency point |
REQUIRED ADAPTOR
Coupling Adaptor MODEL: CA-805B (Capacitive coupling)
Enable for testing characteristics against the noise only with clamping communication cables of electronics equipment's in combination with INS Series.
- Enable to inject the noise without cutting signal, DC, AC, GND, etc.
- Enable to test the noise resistibility of electronics equipments separated individually.
- Realize to test the noise resistibility effectively since the injection can be directly to signal lines.
- Enable to clamp bundle of signal lines whose maximum diameter is 26mm
|
Input Voltage |
4000V Max |
|---|---|
|
Input Pulse Width |
50~1000ns |
|
Dimension / Mass |
(W) 350 X (H) 120 X (D) 130mm / approx. 3kg |
|
Storage Temperature Range |
-5~55℃ |
|
Inside Clamp Diameter |
26mm |
