Advanced Illumination - LL163 Series Classic Line Lights
- Our classic LL163 Line Lights are suitable for low intensity, low speed line scan applications.
- These line lights are well established and have proven reliability.
- Provides a intensity level of 24kLux (working distance of 25mm).
- Available in 7 wavelengths including 395nm (UV) and 880nm (IR).

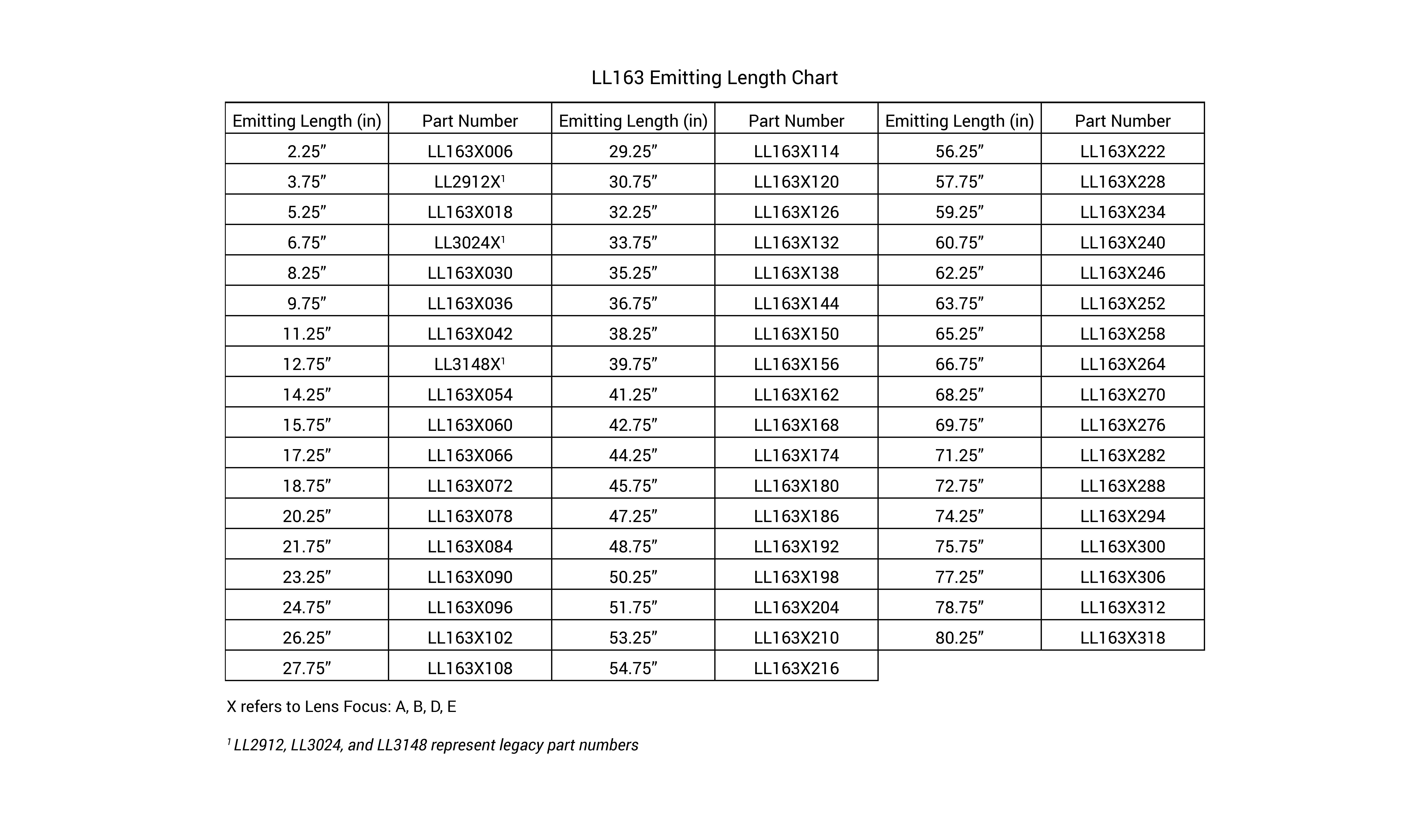

- Pre-engineered for expandability in 1.5” (38.1mm) increments up to 81” (2.06m).
- LL163 derivatives include LL2912 (3”), LL3024 (6”) and LL3148 (12”) (which represent legacy part numbers)
General Specs
|
Electrical Specifications |
Color |
24V Current |
All Other Controls |
|---|---|---|---|
|
625, 660, 880 |
0.03A per 1.5" |
0.014A Max per 1.5" |
|
|
395, 470, 520, WHI |
0.02A per 1.5" |
0.009A Max per 1.5" |
|
|
Normal Operating Temperature |
0 - 60°C |
||
|
Weight |
Per 3" - 226.8g (8.0oz) | ||
|
Standard Cable Information |
2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain. |
||
|
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 880 Group 1 (Low-Risk) Applicable Wavelengths: 470, 520, 625, 660, WHI Group 2 (Moderate-Risk) Applicable Wavelengths: 395 |
||
|
Compliance |
CE, RoHS, IEC 62471 |
||
|
IP Rating |
IP50 |
||
|
Lumen Maintenance |
L70 = 50,000 Hours |
||

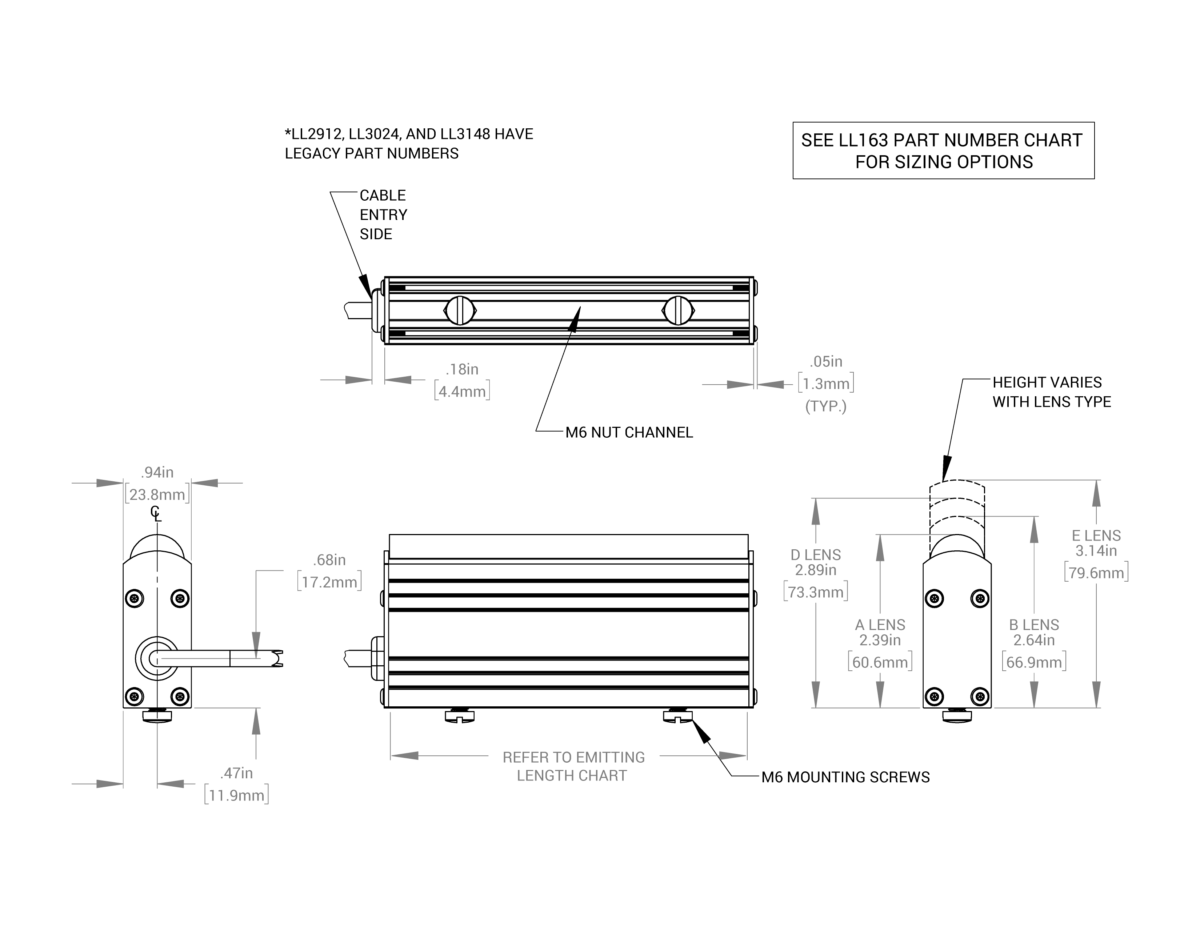

Mechanical Specs
Optical Specs
Electrical Specs
Control Specs
Part Number Key
CAD Files
- LL163 A Lens EASM (ZIP)
- LL163 B Lens EASM (ZIP)
- LL163 D Lens EASM (ZIP)
- LL163 E Lens EASM (ZIP)
- LL163 A Lens STEP (ZIP)
- LL163 B Lens STEP (ZIP)
- LL163 D Lens STEP (ZIP)
- LL163 E Lens STEP (ZIP)
- LL2912 A Lens STEP (ZIP)
- LL2912 B Lens STEP (ZIP)
- LL2912 D Lens STEP (ZIP)
- LL2912 E Lens STEP (ZIP)
- LL3024 A Lens STEP (ZIP)
- LL3024 B Lens STEP (ZIP)
- LL3024 D Lens STEP (ZIP)
- LL3024 E Lens STEP (ZIP)
- LL3148 A Lens STEP (ZIP)
- LL3148 B Lens STEP (ZIP)
- LL3148 D Lens STEP (ZIP)
- LL3148 E Lens STEP (ZIP)
