Pre-Engineered Scalability Enables Customized Emitting Lengths in 2″ Increments to 20″
-
Intense, Diffuse Lighting with 226 kLux at Emitting Surface
-
Multiple Available Wavelengths, Including Visible Monochromatics, Infrared, and White
-
Available Washdown Option for Difficult Environments
-
Can be Applied in Backlighting or Diffuse Front Lighting Geometries
Advanced Illumination - DF196 MicroBrite™ Direct Dark Field Series
- Part of the MicroBrite™ family of high performance, compact machine vision lights.
- Our DF196 Series delivers direct illumination at a low angle to cast shadows used to identify surface defects, embossed text, etc.
- This dark field ring light is more directional and less diffuse than the DF198.
- Available in 4 sizes with an intesity of 72kLux (working distance of 25mm with DF196-100)
General Specs
|
Electrical Specifications |
Part Number |
Color |
24V Current |
All Other Controls |
|---|---|---|---|---|
|
DF196-050 |
625 |
N/A |
0.16 A Max |
|
|
DF196-050 |
455, 530, WHI |
N/A |
0.27 A Max |
|
|
DF196-050 |
RGB |
N/A |
0.07 A Max |
|
|
DF196-100 |
625 |
0.7 A |
0.32 A Max |
|
|
DF196-100 |
455, 530, WHI |
0.7 A |
0.54 A Max |
|
|
DF196-100 |
RGB |
N/A |
2.1 A Max |
|
|
DF196-180 |
625 |
1.25 A |
0.58 A Max |
|
|
DF196-180 |
455, 530, WHI |
1.25 A |
0.97 A Max |
|
|
DF196-180 |
RGB |
N/A |
2.9 A Max |
|
|
DF196-280 |
625 |
1.25 A |
0.58 A Max |
|
|
DF196-280 |
455, 530, WHI |
1.25 A |
0.97 A Max |
|
|
DF196-280 |
RGB |
N/A |
5.0 A Max |
|
|
Normal Operating Temperature |
0 - 60°C |
|||
|
Weight |
DF196-050: 83.9g (2.96oz) DF196-100: 263.1g (9.3oz) DF196-180: 521.6g (18.4oz) DF196-280: 780.2g (27.5oz) |
|||
|
Standard Cable Information |
2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain. |
|||
|
Photobiological Risk Factor |
Group 1 (Low Risk) Applicable Wavelengths: 455, 530, 625, RGB, WHI | |||
|
Compliance |
CE, RoHS, IEC 62471 |
|||
|
IP Rating |
IP40 |
|||
|
Lumen Maintenance |
L70 = 50,000 Hours |
|||

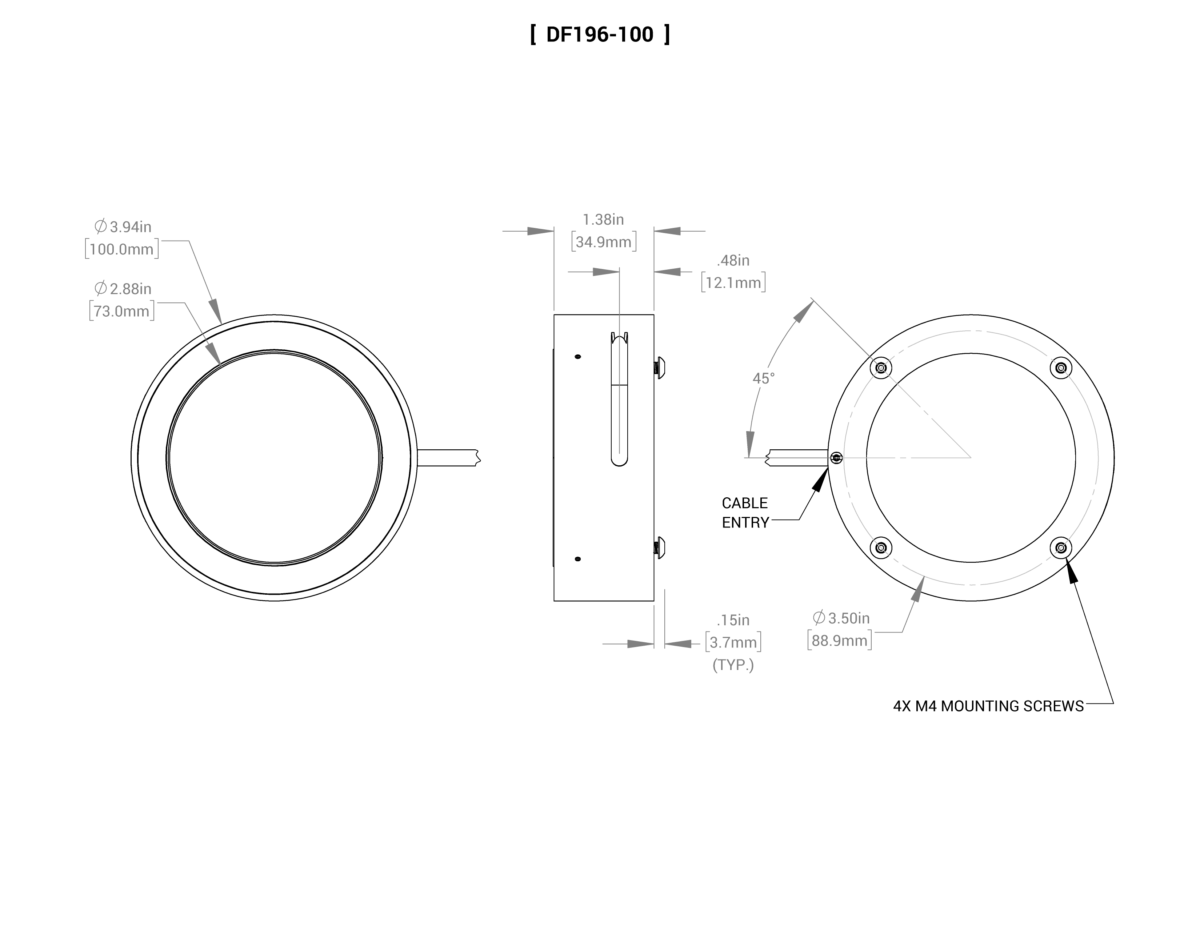

Mechanical Specs
Optical Specs
Electrical Specs
Control Specs
Part Number Key
CAD Files
Support Materials
More Product Information
- The RL1424 is characterized as a Small Aimed Bright Field ring light.
- Precisely aimed LEDs provide a level of lighting control not found in traditional illuminators.
- A range of standoffs and fields of view may be specified at the time of order.
- The RL1424 is available in a wide range of wavelengths from UV to IR.
- Diffuser and polarizer options are also available.
- The large inner diameter of the ring light can accommodate lenses up to 55mm in diameter.
- The light can also be ordered with a variety of mounting options.
- 100 MHz, 200 MHz, 350 MHz, 500 MHz and 1 GHz bandwidths
- Up to 4 GS/s sample rate
- Long Memory – up to 20 Mpts
- 10.1” capacitive touch screen display
- 16 Digital Channel MSO option
- MAUI - Most Advanced User Interface
- Designed for Touch
- Built for Simplicity
- Made to Solve
- Advanced Anomaly Detection
- Fast Waveform Update
- History Mode - Waveform Playback
- WaveScan - Search and Find
- Multi-Instrument Capabilities
- Protocol Analysis - Serial Trigger and Decode
- Waveform Generation - Built-in Function Generator
- Digital Voltmeter and Frequency Counter
- Future Proof
- Upgradeable Bandwidth
- Field Upgradable Software and Hardware Options
-
The BL2 Series provides a highly uniform and high intensity, diffuse backlight source, primarily used for creating object silhouettes of high contrast or imaging through semi-translucent materials.
-
BL2 Backlights are pre-engineered for scalability, allowing for size configurations in 1″ increments up to 46″ in length and width.
-
This Backlight series is offered in 5 wavelength options and can be configured with either a polarization or collimation film.
-
As with all Advanced illumination products, this series is built for tailorability while still maintaining a standard lead time of one to three weeks.
-
Each side of a BL2 is equiped with M6 nut channels, allowing for quick and easy mounting. This series comes with our LB111 Mounting Brackets.
- This ultra high intensity line light series is built to handle the most extreme line scan lighting requirements.
- Provides an intensity level of 2,100 klx (working distance of 75 mm).
- Pre-engineered for expandability in 150 mm (6”) increments up to 2400 mm (94.5”).
- Available in multiple wavelengths.
- In the event of abnormally high ambient temperatures, the device automatically shuts down when the housing reaches 60°C and resumes operation at 56°C.
Note: Requires third party power supplies – refer to spec sheet.
Our EuroBrite™ lineup provides industry leading technology with value pricing for an unmatched performance / price ratio:
- Complete built-in control for continuous and strobe modes.
- Adaptive Power™, a feature of the EuroBrite™ lighting controller, utilizes an onboard thermistor to maximize light output in continuous mode.
- Adaptive Overdrive,™ another feature of the EuroBrite™ lighting controller, provides a maximal output pulse in strobe mode regardless of the exposure period.
- IP67 sealed enclosure suitable for washdown environments.
- Rugged construction that has been tested to withstand over 1000lb.
- Industrial grade LEDs providing high-intensity illumination of 45klux (working distance of 200mm).
- Daisy chain up to 4 for a combined length of 48”.
- High Intensity: up to 9x brighter than the existing SL191 Pattern Projecting Spot Light and more than 3x brighter than the leading competitive structured light projector.
- Projection patterns are easily configured with available reticles, including line, grid, cross, multiple lines, and half sphere, with custom reticles available.
- Customizable: available in multiple wavelengths, including white.
- Constructed with a large heat sink for improved LED thermal management to facilitate increased brightness while maintaining safe operating temperatures.
- Ideal solution for machine vision inspection applications requiring structured illumination, including edge detection, locating offsets, and assessing topography.
- Requires a reticle and lens (sold separately); see available reticles here.
- Eliminating all but a narrow band of light (+/- 40nm) centered on the specified wavelength, band pass filters are used to enhance colors, or to stop unwanted ambient light from reaching the camera.
- Filtering can replace existing shrouds, simplifying the physical set up of an inspection site.
- Ai offers 660nm and 635nm band pass filters to fit a number of different lens sizes.
- Part of the MicroBrite™ family of high performance, compact machine vision lights.
- Produces an intensity level of 41kLux (working distance of 180mm).
- Available in several sizes including 50mm, 100mm, 160mm and 200mm.
Advanced Illumination
Advanced Illumination® (Ai) is a leading developer and manufacturer of LED lighting and control technology for machine vision illumination. Founded in 1993, Advanced Illumination was the first company to bring LED lighting to market and has since become one of the most trusted names in the machine vision industry. Ai offers a number of highly customizable backlights, bar lights, coaxial lights, diffuse lights, line lights, bright field ring lights, dark field ring lights and spot lights. Whether you’re an OEM or an end user, Advanced Illumination has a knowledgeable team of engineers and manufacturing professionals ready to provide you with a solution tailored to your lighting needs.
